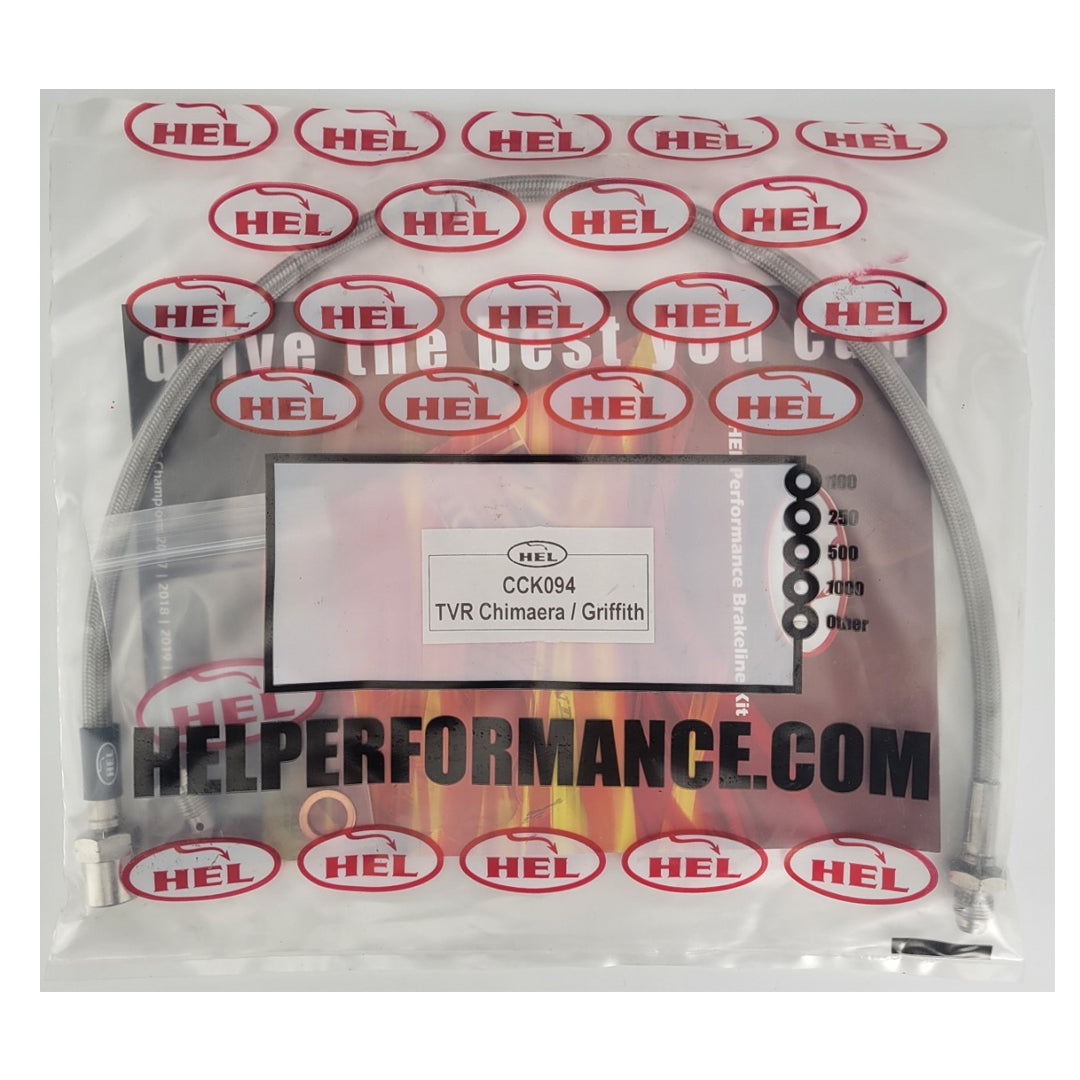

HEL TVR Chimaera Griffith Stainless Steel Braided Clutch Hose Clear

CLEARANCE

Part Number: CCK094

  • HEL lifetime warranty
  • Stainless steel hose & fittings
£18.00
£18.00 £31.49
HEL TVR Chimaera Griffith Stainless Steel Braided Clutch Hose Clear

£18.00

Product Details

*Clear*

Suitable For:

  • Chimaera/Griffith (right hand drive) Flexible Clutch Bleed Line

Every HEL Performance clutch hose is meticulously crafted in-house, combining the highest-quality stainless steel fittings with hard-drawn tensile stainless steel braided hose

With an extensive array of automotive listings, each comprehensive kit is custom-made to exact specifications, ensuring the visual appeal, superior quality, and top-tier performance you demand

  • Stainless steel fittings (not zinc plated)
  • HEL Lifetime warranty

Vehicle Fitment

Specifications

  • Hose Inner Material: PTFE
  • Hose Outer Material: 303/304 stainless steel & protective PVC cover
  • Fittings Material: 303/304 stainless steel
  • Temperature Range: -70°C to 260°C (-158°F to 500°F)
  • Internal Diameter: 3.5mm (0.138")
  • Outside Diameter: 7.5mm (0.295")
  • Maximum Working Pressure: 290bar (4206psi)
  • Burst Pressure: 870bar (12618psi)
  • Minimum Bend Radius: 38mm (1.496")

What's Included

  • Stainless steel braided clutch line(s)
  • Natural plain stainless steel banjo bolts (if the fittings require them)
  • Copper crush washers (if the fittings require them)
  • Lifetime warranty keyring fob
  • Installation leaflet

It is the installer's responsibility to ensure that all components are properly tightened and secured before operating the vehicle. Neglecting to do so may lead to component failure, accidents, or serious injury
