Davies Craig 0444 Digital Electric Cooling Fan Switch

Davies Craig 0444 Digital Electric Cooling Fan Switch

  • Digital fan switch
  • Used with electric fans or water pumps

DC0444

Regular price £39.16
Sale price £39.16 Regular price

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
More about how your protected
Davies Craig 0444 Digital Electric Cooling Fan Switch

£39.16

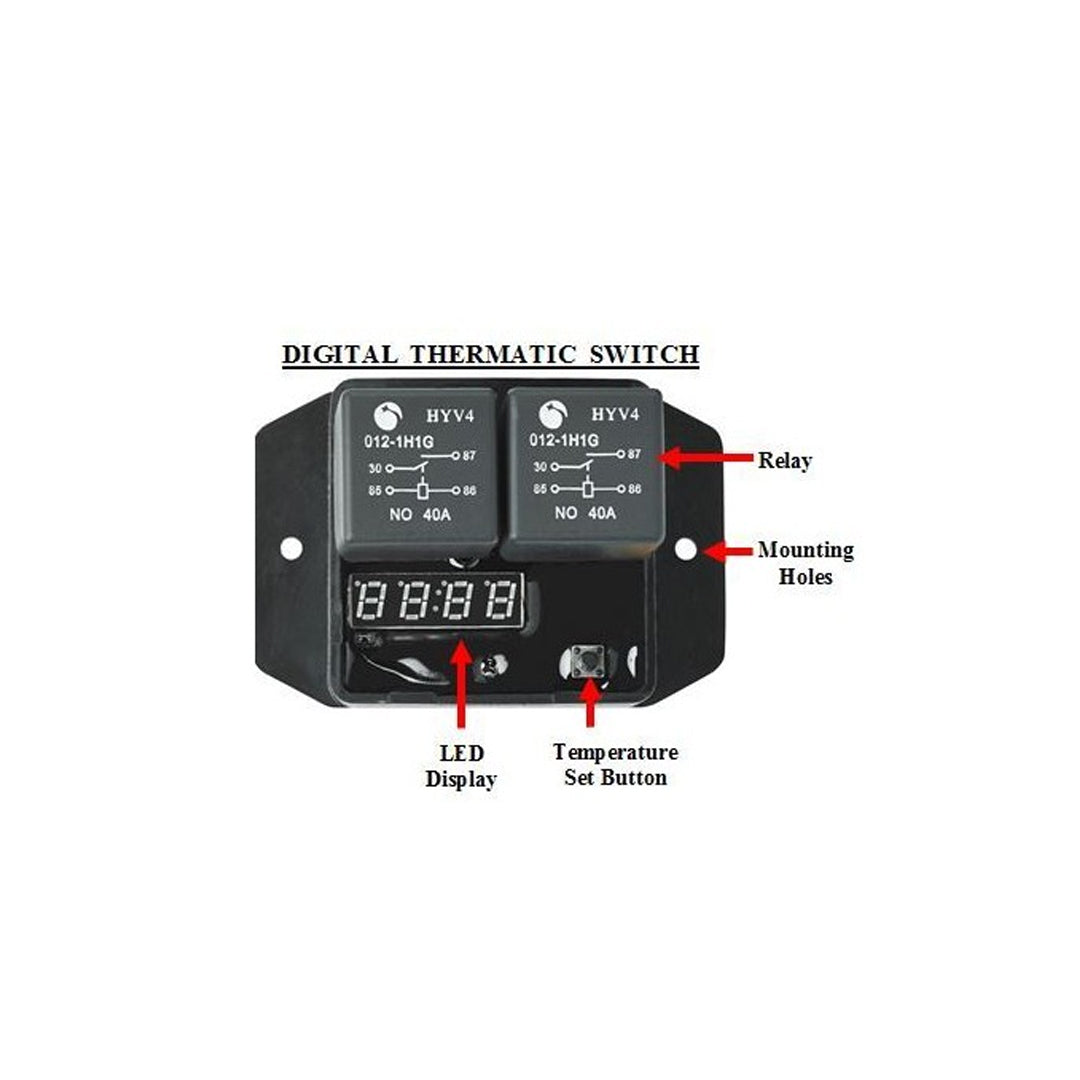

The Davies Craig digital fan switch (#0444) can be used with electric fans or electric water pumps. The sensor, a temperature probe (for air or coolant) senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or the sensor can also be placed directly into the coolant system

    *Note: If using this switch for use with DC EWP's, it will not vary the speed of the pump in response to engine temperature but rather turn the pump on and off at your set temperature. For EWP control, we would recommend part number 8002 which can manage both the EWP and your thermatic fans

    • Max voltage: 12 to 27v (For 24V, relays need to be changed, not supplied in kit)
    • Max current: Rated to 30 amps per Fan (maximum 40amp per fan) unit comes with 2 x 30 amp fuses and 2 x 40 amp relays
    • Relay setup: Dual relay
    • Sensor wire length: 142cm in total (wire from switch 112cm plus sensor connector 30cm)
    • Speed: Single speed, 10-second delay to start up the second fan
    • Applications: Suitable for single and dual fan applications
    • Screen display: LED digital temp display, actual temp + set temp
    • Temperature display: Centigrade or Fahrenheit
    • Temperature settings: 40°c to 110°c (104°F to 230°F)
    • Temperature setting: Push-button
    • Circuit type: Pre-programmed micro controller
    • Output wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe
    • Dimensions: 95x65x56 mm

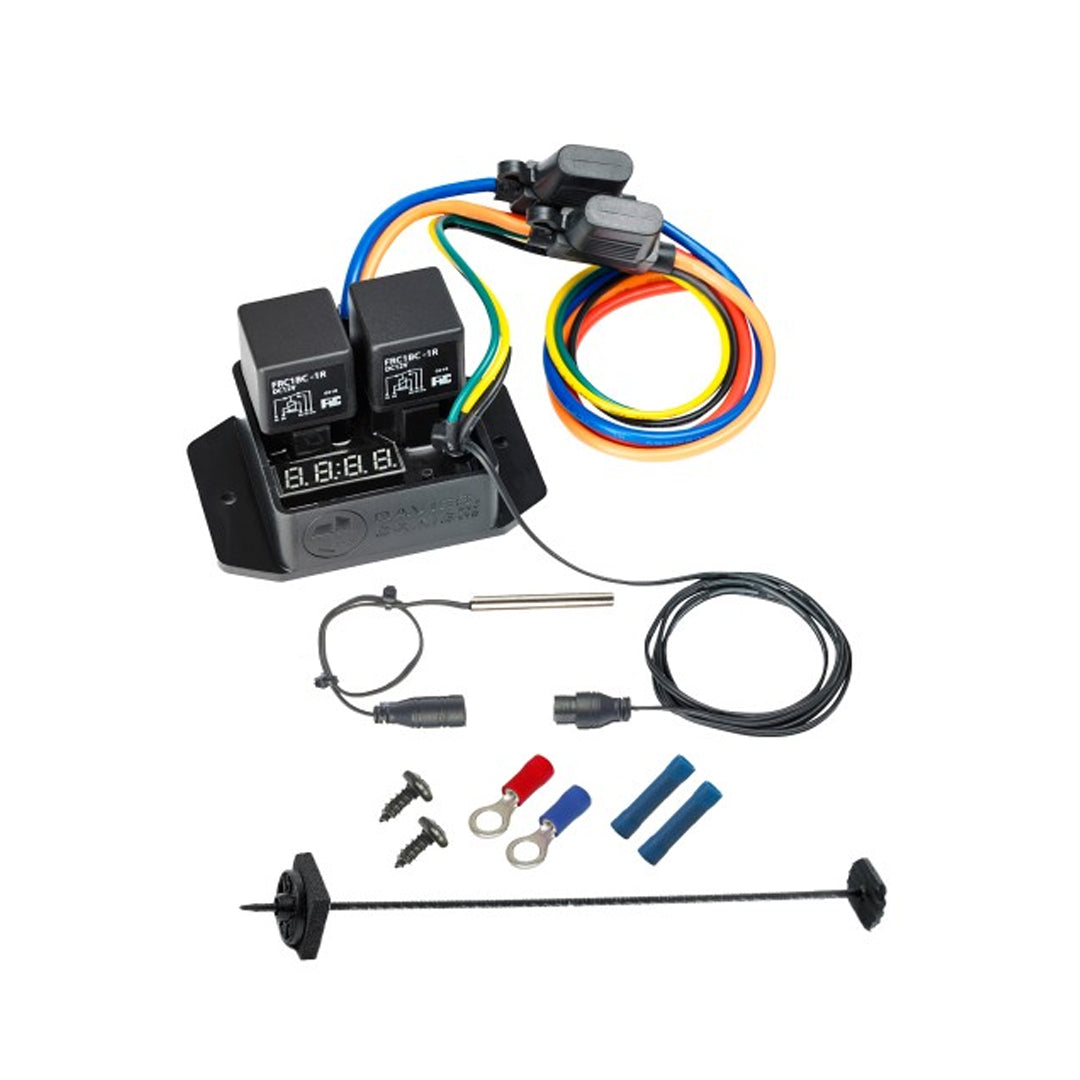

    • 1x Digital fan switch IP66
    • 1x Thermal sensor probe
    • 1x Mounting kit for thermal sensor probe
    • 1x Red 6mm ring terminal
    • 1x Blue 6mm ring terminal
    • 2x Blue wire joiner
    • 2x Self tap screw
    • Instructions
