Davies Craig 0401 Mechanical Electric Cooling Fan Switch

Davies Craig 0401 Mechanical Electric Cooling Fan Switch

  • Mechanical fan switch
  • Use with electric fans or water pumps
INSTRUCTIONS

DC0401

£34.00
£34.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
More about how your protected
Davies Craig 0401 Mechanical Electric Cooling Fan Switch

£34.00

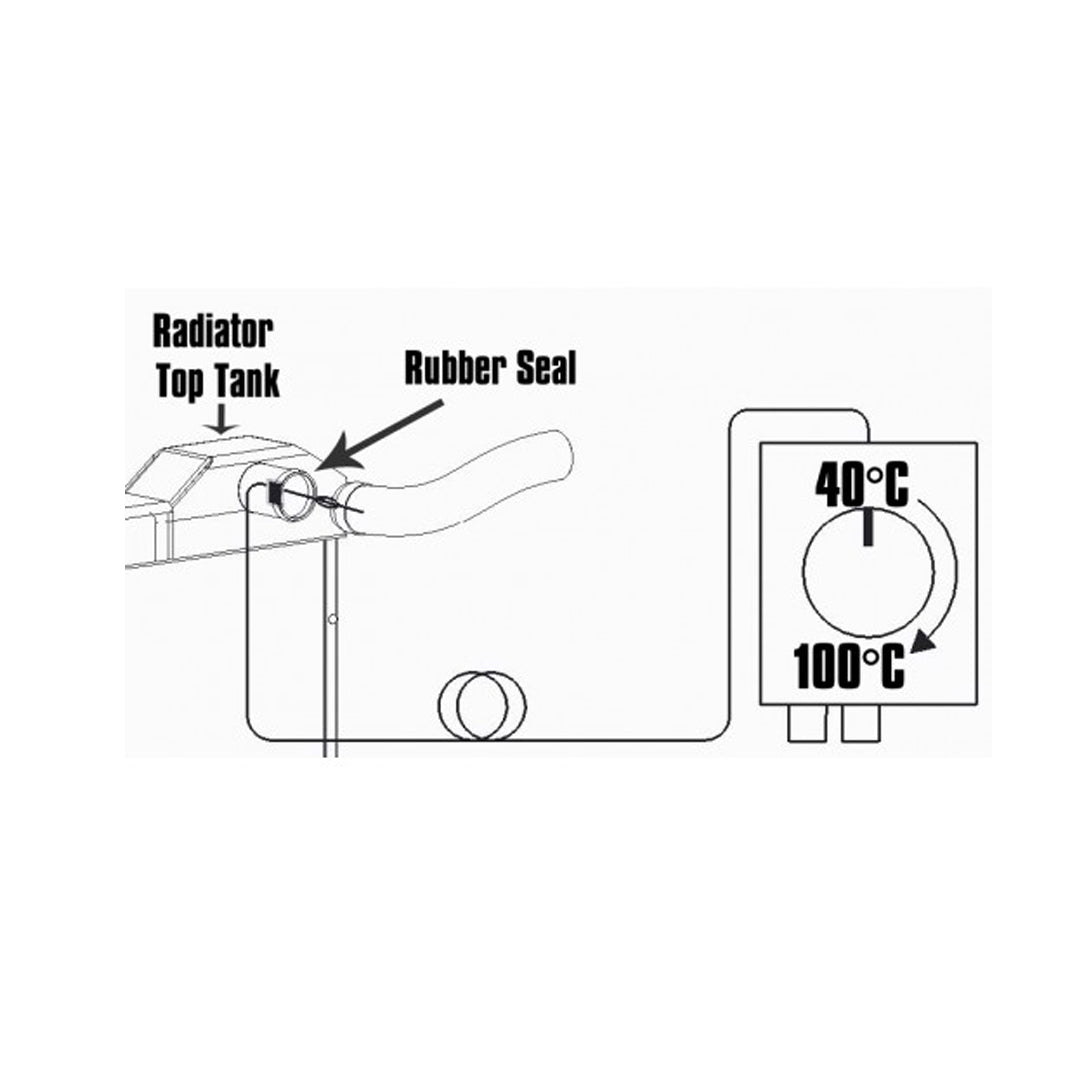

The Davies Craig mechanical fan switch (#0401) can be used with electric fans or electric water pumps. It senses the coolant temperature after it passes through the engine block prior to entering the radiator and is adjustable from 40° to 100°C (104° to 212°F). The thermal switch is mounted near the radiator and the stainless steel probe is fitted inside the radiator hose. The thermal switch & relay kit enables a fan to operate both thermally and also when the air conditioning is running.

  • Temperature range: 40° to 100°c (104° to 212°f)
  • Lead length: 100cm
  • Sensor probe size: Suites 6mm olive

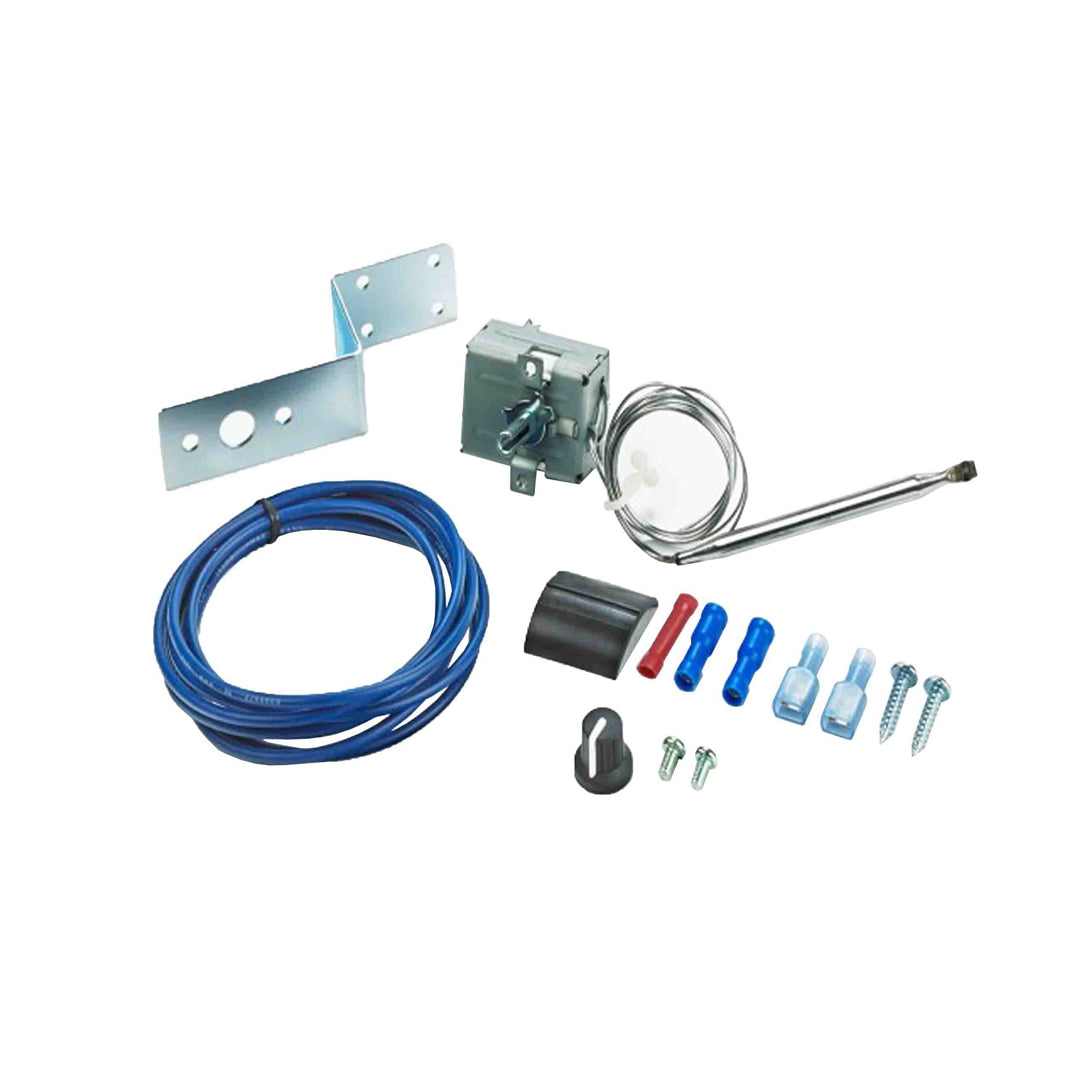

  • 1x Thermal switch knob
  • 1x Rubber seal (suits 1mm capillary)
  • 2x Red wire joiners
  • 2 x Screws to connect the bracket to the car
  • 2 x Small screws to connect the switch to the bracket
  • 1 x Bracket
  • 2 x Blue butt connectors
  • 2 x Spade terminals
  • 1 x Blue wire 110cm (switch to ignition)
  • Instructions
