Blackline HLF223 BMW 210L Large Case Helical Gear LSD

The Blackline HLF223 helical limited-slip differential is designed for BMW models fitted with the 210mm 210L large case differential, providing a direct performance upgrade over the standard open differential. By intelligently distributing torque between the driven wheels, it improves traction, cornering stability and power delivery, making it ideal for fast road and track use.

Unlike clutch-type differentials, this LSD uses a precision helical gear torque-biasing design, eliminating clutch plates and the associated wear. This results in smooth, progressive engagement with minimal noise and virtually no maintenance requirements.

It is a torque-biasing differential that automatically transfers torque to the wheel with the most available grip. This significantly improves traction during acceleration, particularly when exiting corners or driving in low-grip conditions.

Inside the differential, parallel-axis helical gears generate internal thrust forces proportional to the applied torque. These forces create resistance within the differential housing, allowing torque to be directed to the wheel with greater traction while maintaining smooth operation during normal driving.

With a 5:1 torque bias ratio, the Blackline LSD can transfer up to five times more torque to the wheel with the most grip. This allows the differential to handle significant traction imbalances while maintaining predictable and stable handling. In rare situations where one wheel has completely lost traction, techniques such as light braking can help the differential redistribute torque effectively.

Manufactured from high-strength 8620 alloy steel, it is built for durability and long service life. Precision machining and heat treatment ensure it can withstand high torque loads in demanding performance environments.

Compared to a standard open differential, the Blackline LSD provides several key advantages:

• Improved traction under acceleration
• Reduced inside wheel spin when cornering
• Smoother and faster response than viscous LSD systems
• Progressive engagement without harsh locking
• No clutch plates to wear or require servicing
• Quiet operation suitable for road and track use

The differential is designed as a direct replacement for the original unit, fitting the large case 210L diffs, used in the vehicles listed below.

Large case 210mm (31mm offset) 10 bolt crown wheel differential

• 3 Series E46 330d manual
• 3 Series E90 325d manual (7519452 final drive); 330d manual production up to 03/2007
• 3 Series E92 325d manual (7519452 final drive); 330d manual production up to 2007
• 5 Series E39 530d manual
• 5 Series E60 525d manual; 530d auto; 530d manual; 535d auto
• 7 Series E38 740d

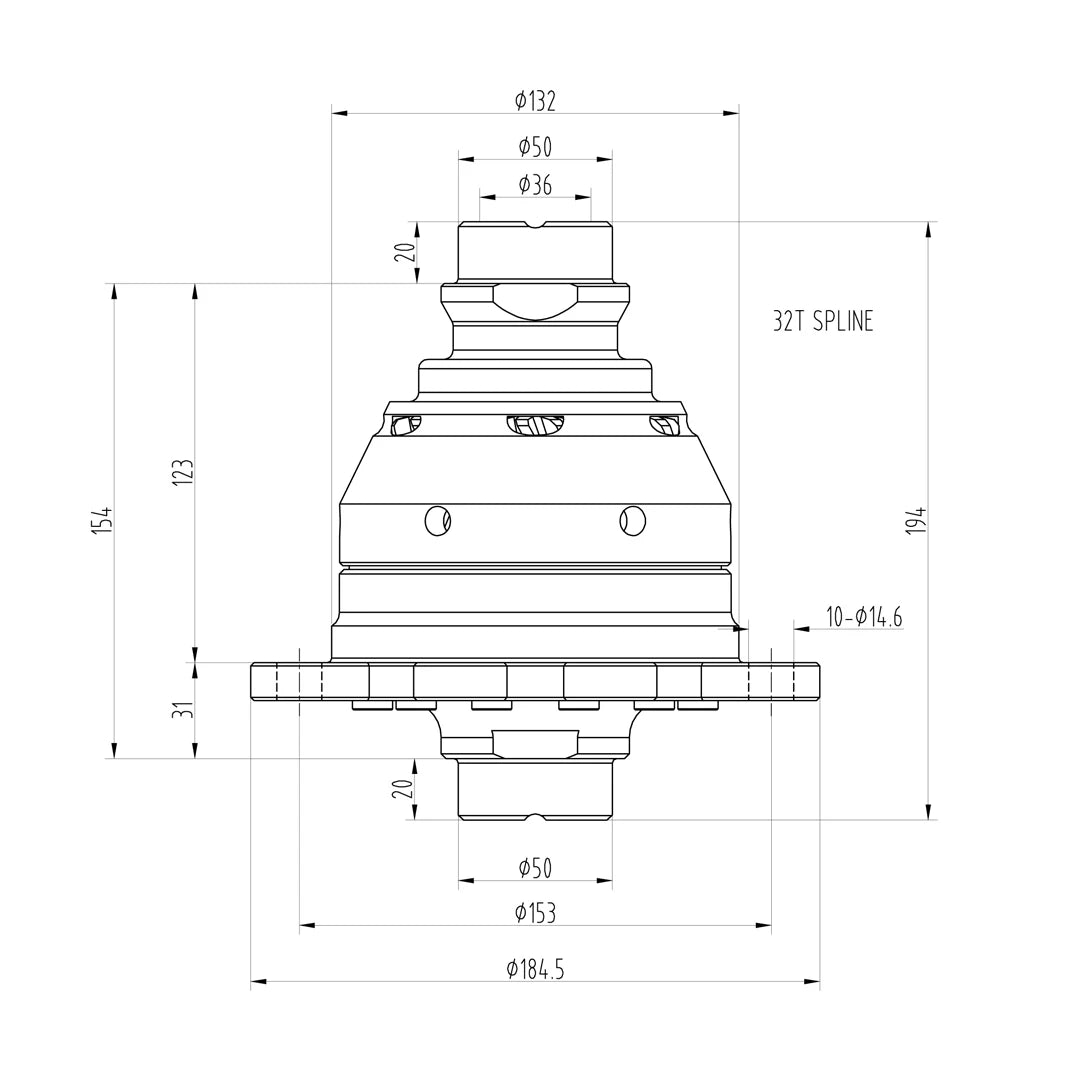

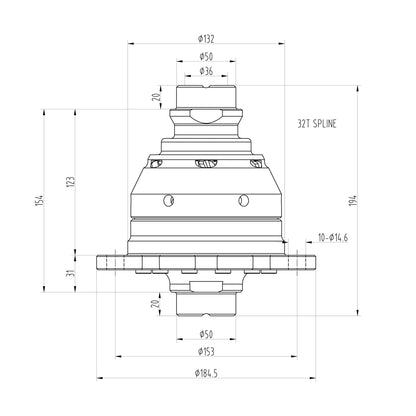

• See images for dimensions
• The LSD is a straight swap for the standard unit, you will only need to replace gaskets/seals and 2 diff bearings (if the originals cannot be re-used)
• Helical gear diffs do not require a special oil (OE diff oil is suitable)
• This is a torque-biasing helical gear limited slip differential - not a plate type, viscous coupling or clutch pack differential (it does not lock)

• Includes assembled differential unit only
• Bearings, gears, gaskets/seals etc are not included
