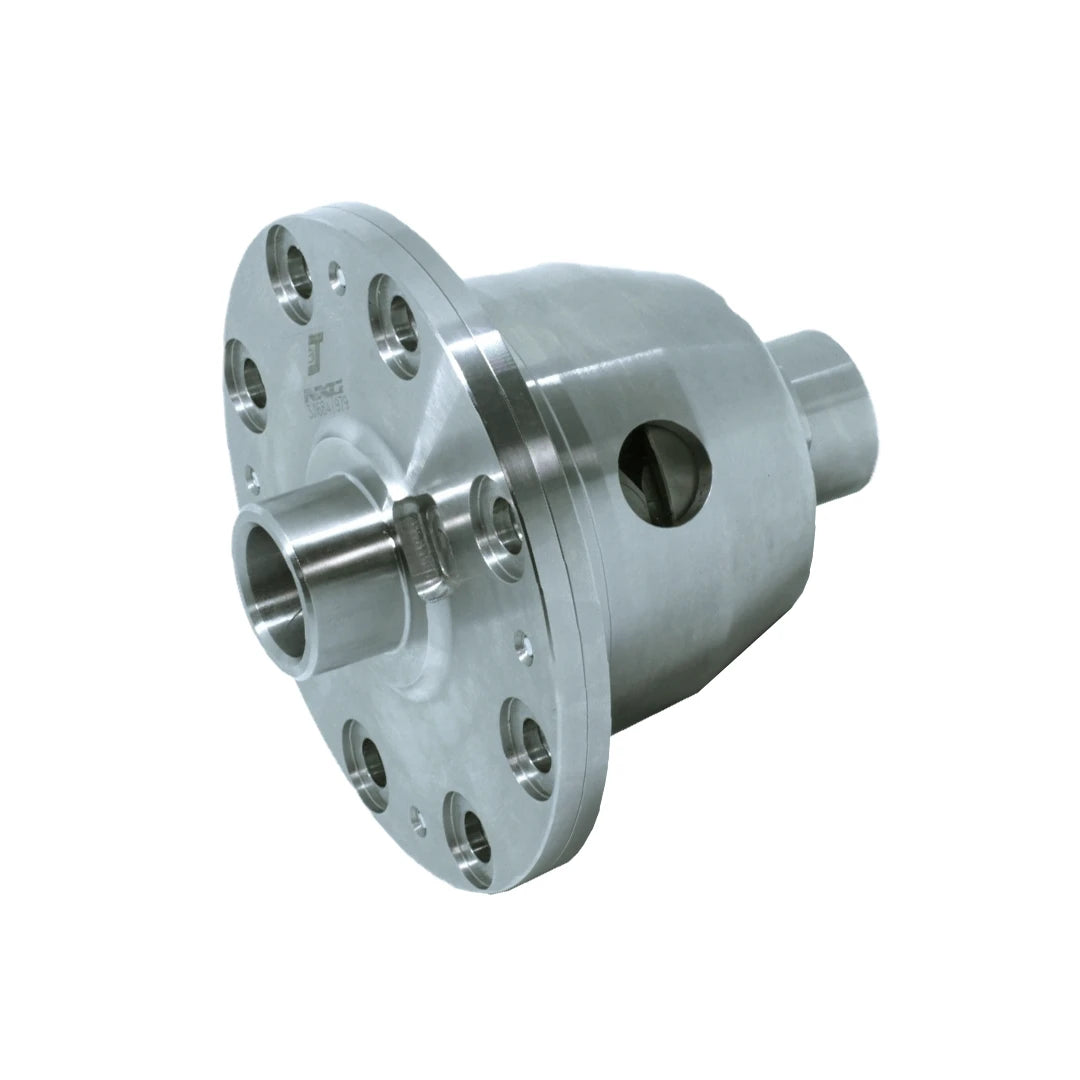

3J NXG Performance Mazda MX5 Small Plate LSD

3J NXG Performance Mazda MX5 Small Plate LSD

  • Plate-type limited slip differential
  • Sintered plate upgrade option
  • See 'Specifications' for ramp angles/preload

MLR.CEA-D

Regular price £833.33
Sale price £833.33 Regular price

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
More about how your protected
3J NXG Performance Mazda MX5 Small Plate LSD

£833.33


Small size with push-in driveshafts

Suitable For:

  • MX5 Mk1

The NXG Plate-type limited slip differential is designed, manufactured and assembled right here in the UK. It has been engineered to be the strongest, most progressive and most versatile LSD unit in the marketplace today

The NXG Performance bevel and planet gear pack, with its big, strong tooth profile, gives not only a smooth mesh but also all but eliminates the rattle and excessive backlash often associated with plate-type LSDs

Whilst the plate pack, which always runs on a minimum of 8 active surfaces (even in our lighter pre-load settings) to give maximum surface-to-surface area contact during use

Select the sintered plate pack which offers significant reductions in noise as well as improved performance and service life

  • Fast Road; 55/90 Ramps - 25-35lbs/ft (34-47nm) Pre-load
  • Occasional Trackday; 45/90 Ramps - 25-35lbs/ft (34-47nm) Pre-load
  • Regular Trackday; 45/90 Ramps - 35-40lbs/ft (47-54nm) Pre-load
  • Long Circuit Race; 45/90 or 30/90 Ramps - 65-75lbs/ft (88-102nm) Pre-load
  • Short Oval Race; 45/90 Ramps - 50-55lbs/ft (68-75nm) Pre-load
  • Sprint/Hillclimb; 45/90 Ramps - 60-65lbs/ft (81-88nm) Pre-load
  • Rally; 35/90 Ramps - 65-80lbs/ft (88-109nm) Pre-load
  • Drift; 45/45 Ramps - 40-50lbs/ft (64-68nm) Pre-load
  • Includes assembled differential unit only. Bearings, gears, gaskets/seals etc are not included
