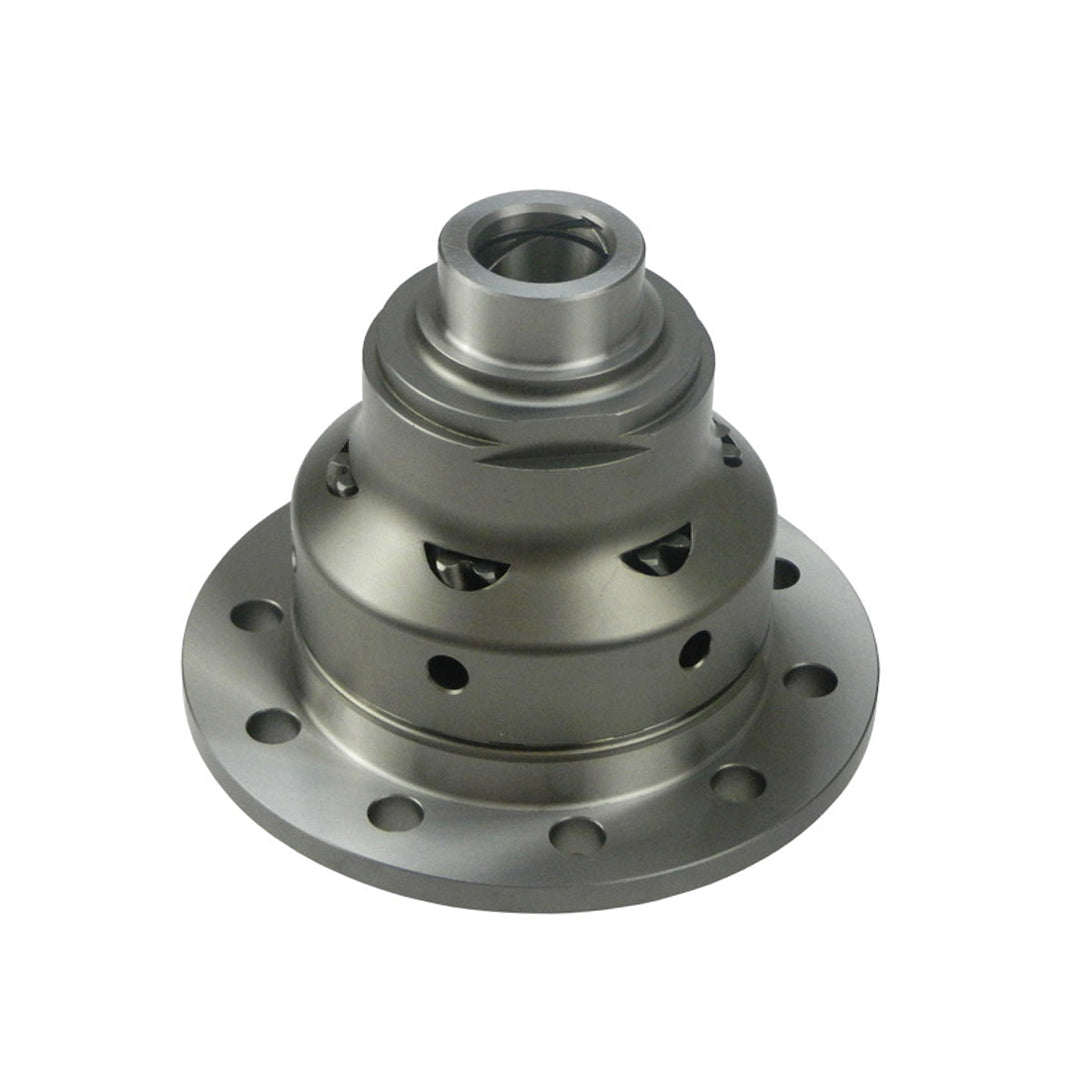

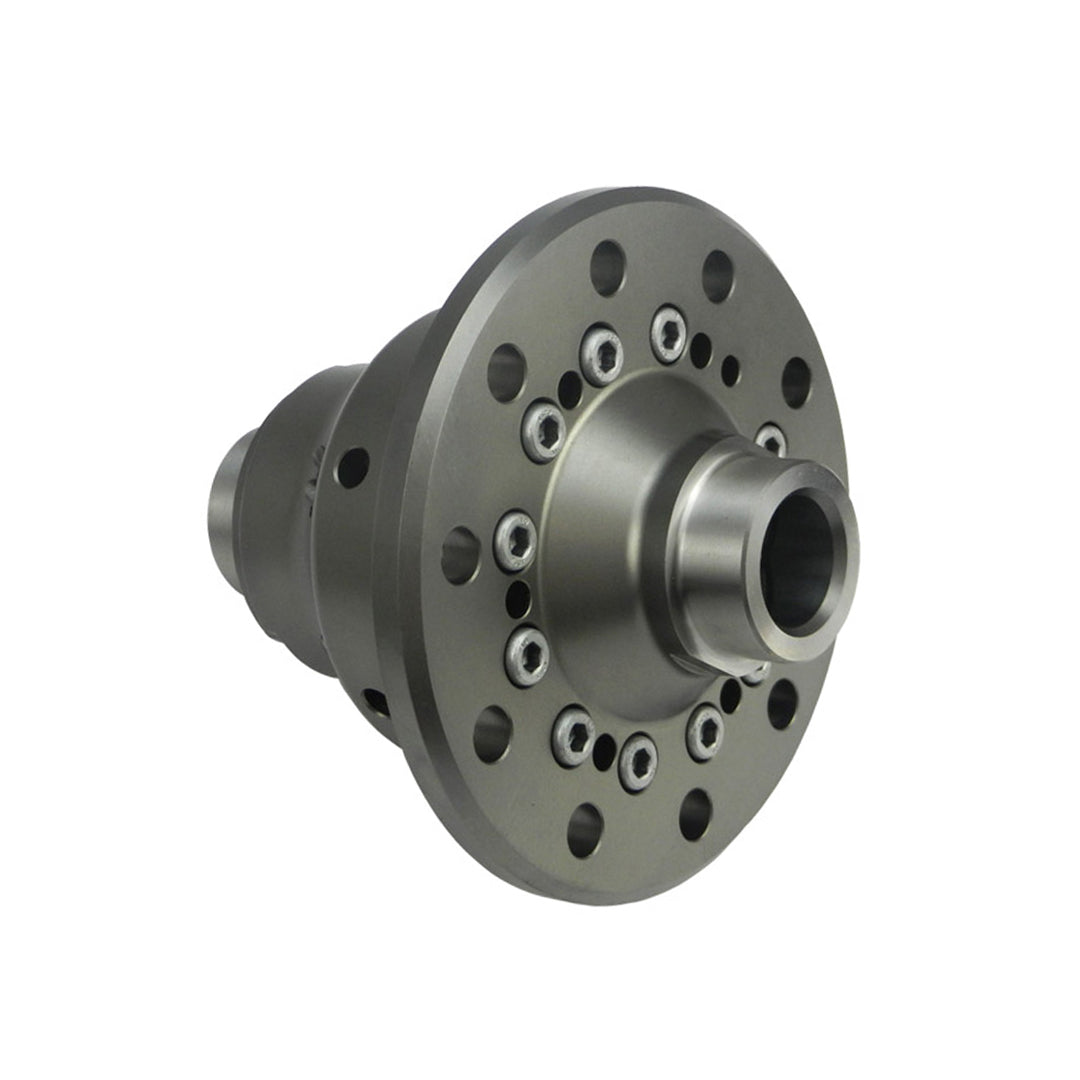

Blackline HLF023 BMW 188L Medium Case Helical Gear LSD

The Blackline HLF023 helical limited-slip differential is designed for BMW models fitted with the 188mm 188L medium case differential, providing a direct performance upgrade over the standard open differential. By intelligently distributing torque between the driven wheels, it improves traction, cornering stability and power delivery, making it ideal for fast road and track use.

Unlike clutch-type differentials, this LSD uses a precision helical gear torque-biasing design, eliminating clutch plates and the associated wear. This results in smooth, progressive engagement with minimal noise and virtually no maintenance requirements.

It is a torque-biasing differential that automatically transfers torque to the wheel with the most available grip. This significantly improves traction during acceleration, particularly when exiting corners or driving in low-grip conditions.

Inside the differential, parallel-axis helical gears generate internal thrust forces proportional to the applied torque. These forces create resistance within the differential housing, allowing torque to be directed to the wheel with greater traction while maintaining smooth operation during normal driving.

With a 5:1 torque bias ratio, the Blackline LSD can transfer up to five times more torque to the wheel with the most grip. This allows the differential to handle significant traction imbalances while maintaining predictable and stable handling. In rare situations where one wheel has completely lost traction, techniques such as light braking can help the differential redistribute torque effectively.

Manufactured from high-strength 8620 alloy steel, it is built for durability and long service life. Precision machining and heat treatment ensure it can withstand high torque loads in demanding performance environments.

Compared to a standard open differential, the Blackline LSD provides several key advantages:

• Improved traction under acceleration
• Reduced inside wheel spin when cornering
• Smoother and faster response than viscous LSD systems
• Progressive engagement without harsh locking
• No clutch plates to wear or require servicing
• Quiet operation suitable for road and track use

The differential is designed as a direct replacement for the original unit, fitting the 188mm medium case diffs, used in the vehicles listed below.

Medium case 188mm (36.4mm offset) 10 bolt crown wheel differential

• 1 Series E82 123d auto; 125i; 128i manual; 135i auto
• 1 Series E87 118d auto; 120d auto 03/2007-09/2008; 123d auto; 130i
• 3 Series E46 318d auto; 320i manual; 323i auto; 325i; 325ti; 325xi; 328i; 330i auto
• 3 Series E90 320d auto (7591017 diff); 320d manual (7591074 diff); 320i (188K casing); 325i auto; 328i auto; 325i manual (7591015 diff); 328xi manual; 330i; 335i auto (7572055 diff); 335xi auto
• 3 Series E92 320d auto (7591017 diff); 325i auto; 328i; 325i manual (7529109 & 7591015 diff); 330i; 335i auto (7572055 diff); 335xi auto
• 5 Series E39 520i manual; 523i
• 5 Series E60 520d auto; 520i; 525i auto; 525i SMG; 530i auto; 535i auto; 535xi auto
• 5 Series F10 535i auto; 535i manual
• 6 Series E63 630i
• 7 Series E38 728i auto
• 7 Series F01 740i (check)
• X3 E83 2.0d auto (rear axle); 3.0i manual (rear axle)
• X5 E53 3.0i manual (rear axle); 4.4i auto (rear axle); 4.6is auto (rear axle)
• X5 E70 3.0d auto (rear axle)
• Z4 E85 Alpina Roadster S 3.4; 2.5i; 3.0si; 2.5si SMG; 3.0i auto
• Z4 E89 2.3i S Drive; 3.0i S Drive

• See images for dimensions
• The LSD is a straight swap for the standard unit, you will only need to replace gaskets/seals and 2 diff bearings (if the originals cannot be re-used)
• Helical gear diffs do not require a special oil (OE diff oil is suitable)
• This is a torque-biasing helical gear limited slip differential - not a plate type, viscous coupling or clutch pack differential (it does not lock)

• Includes assembled differential unit only
• Bearings, gears, gaskets/seals etc are not included
